WIRING INFORMATION FOR 11-PIN POWER SUPPLY CABLES *

* make sure this is the proper diagram for the equipment using the cable

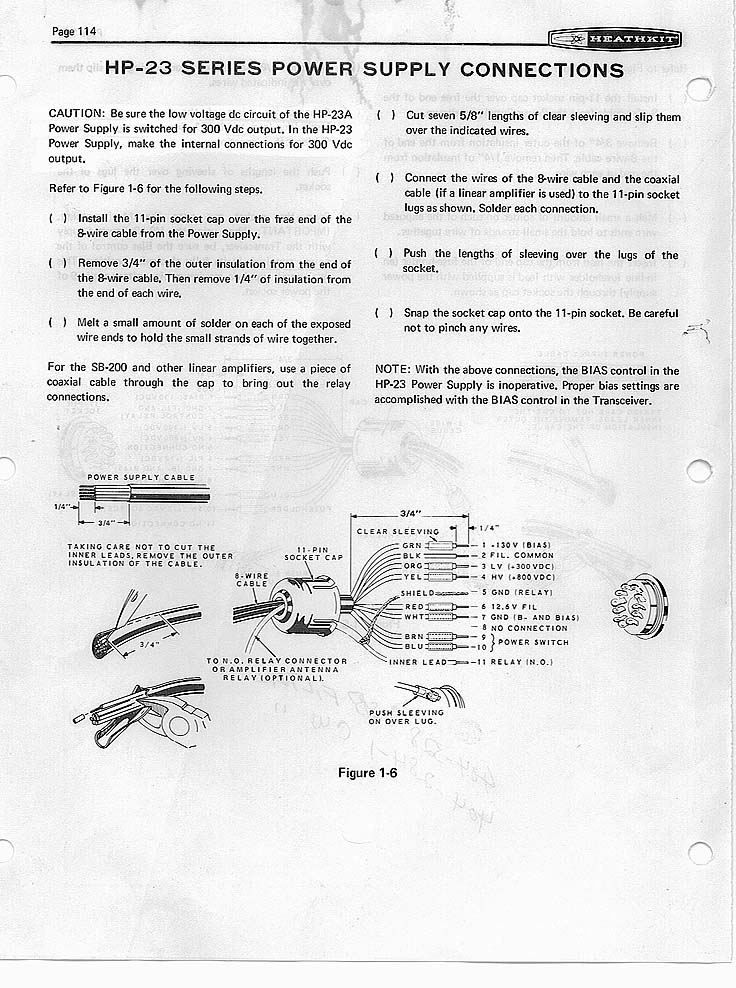

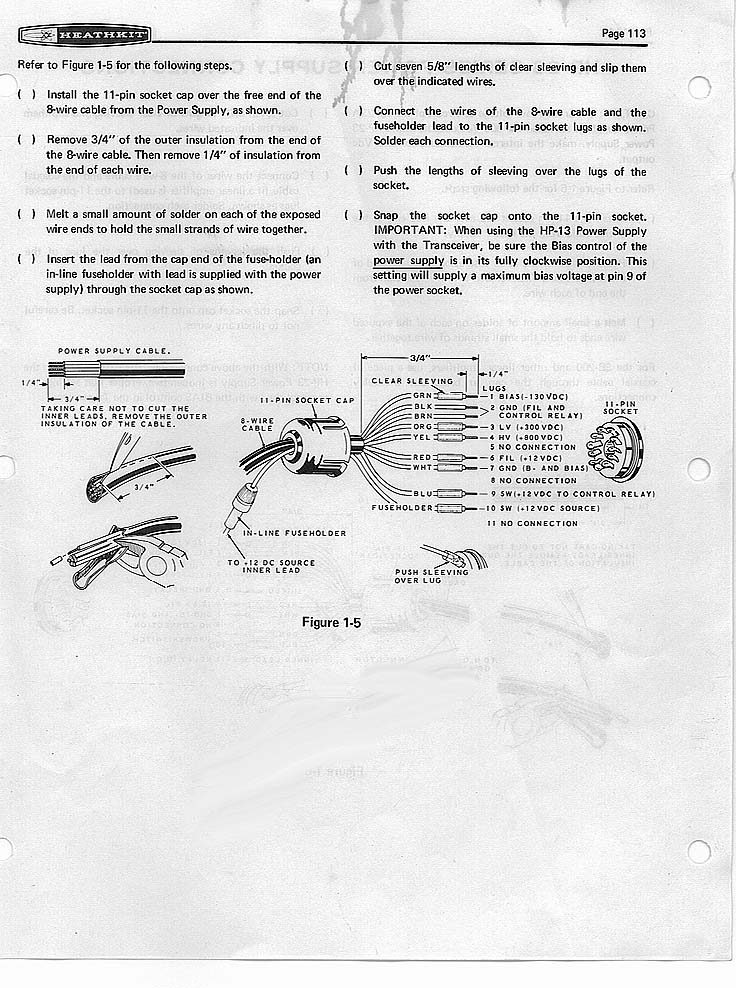

The two pictures below are from a HW-101 manual showing how to construct a cable for use with a HP-23 series power supply.


CLICK ON  PICTURES FOR  LARGER VIEWS
